Monster Overview:

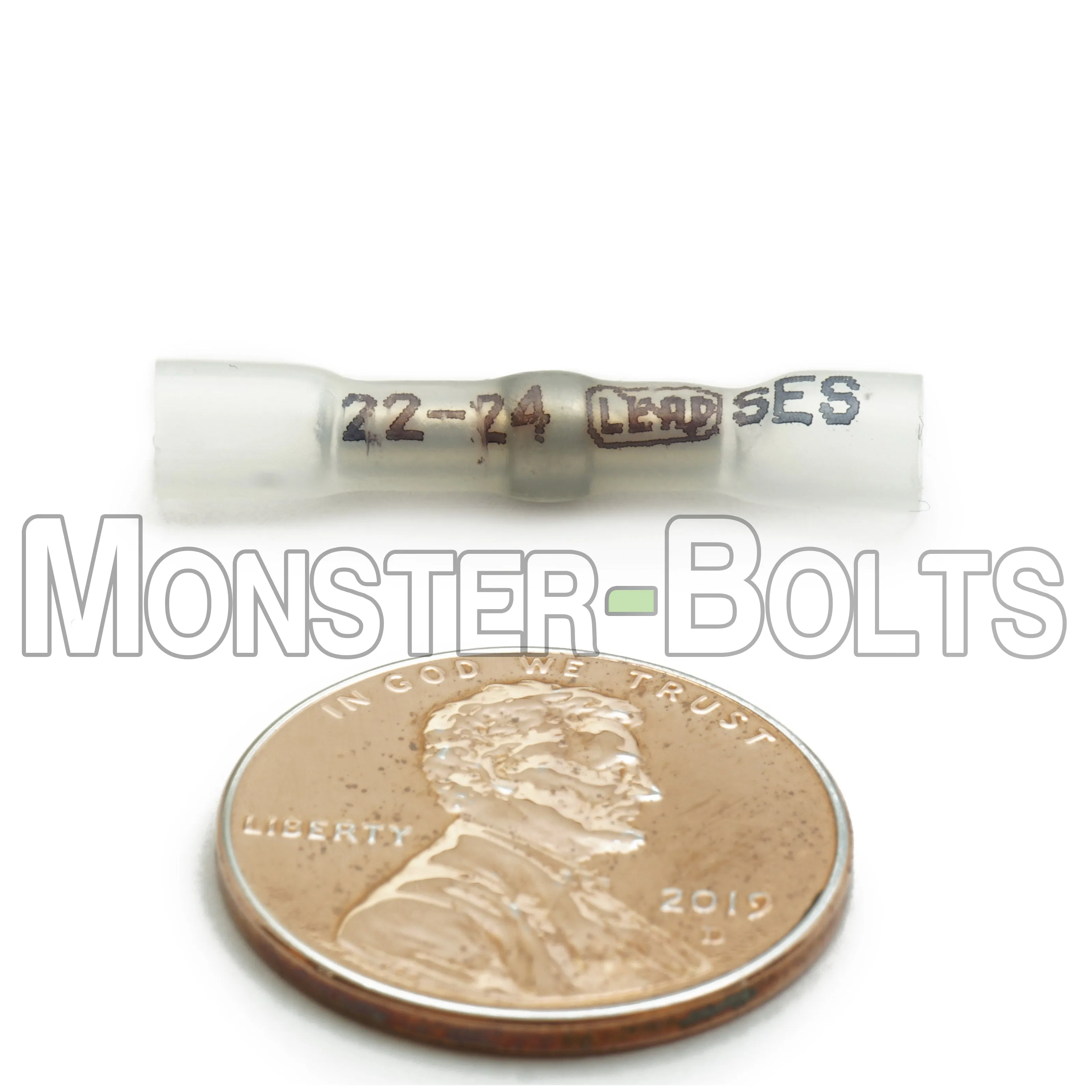

For connections that leave no margin for error, choose NSPA MultiLink? Sealed Crimp and Solder Butt Connectors. These clear 24?C22 AWG connectors combine the strength of crimping with the integrity of a lead-free solder seal for a waterproof, vibration-resistant connection that stands the test of time.

Each connector features a visible solder sleeve with a central wire stop, seamless barrel, and adhesive-lined heat shrink tubing. The RoHS-compliant solder used has a lower melting point and higher tensile strength than traditional lead-based solder, allowing quicker installs with safer performance.

Monster Features:

• Brand: NSPA MultiLink?
• Connector Type: Sealed Crimp & Solder Butt Connector
• Seal Type: Crimp, solder, and heat shrink ?C triple-seal protection
• Made in: USA
• Solder: Lead-free, low-temp solder with high strength and RoHS compliance
• Barrel: Seamless design with internal wire stop and inspection window
• Tubing: Clear adhesive-lined polyolefin, 3:1 shrink ratio
• Waterproof Rating: IP67 when properly installed*
• Compliance: RoHS compliant, no hazardous metals

Monster Specifications:

• Color Code: Clear
• Wire Gauge: 24?C22 AWG
• Part #: MLF5-20
• Seam Type: Seamless barrel with central wire stop and solder window
• Material: Tinned copper lead-free solder adhesive-lined tubing

Installation Instructions:

1. Strip both wires to 5/16" (8 mm)
2. Insert wires into opposite ends until they meet at the wire stop
3. Crimp securely with a ratcheting crimp tool
4. Heat tubing, starting at the center and working outwards
5. Focus on solder sleeve??rotate as you apply heat until solder melts and flows

For best results: Use a heat device of at least 1000 ??F (538 ??C). Distribute heat evenly and avoid isolating flame or overheating one spot.
