Monster Overview:

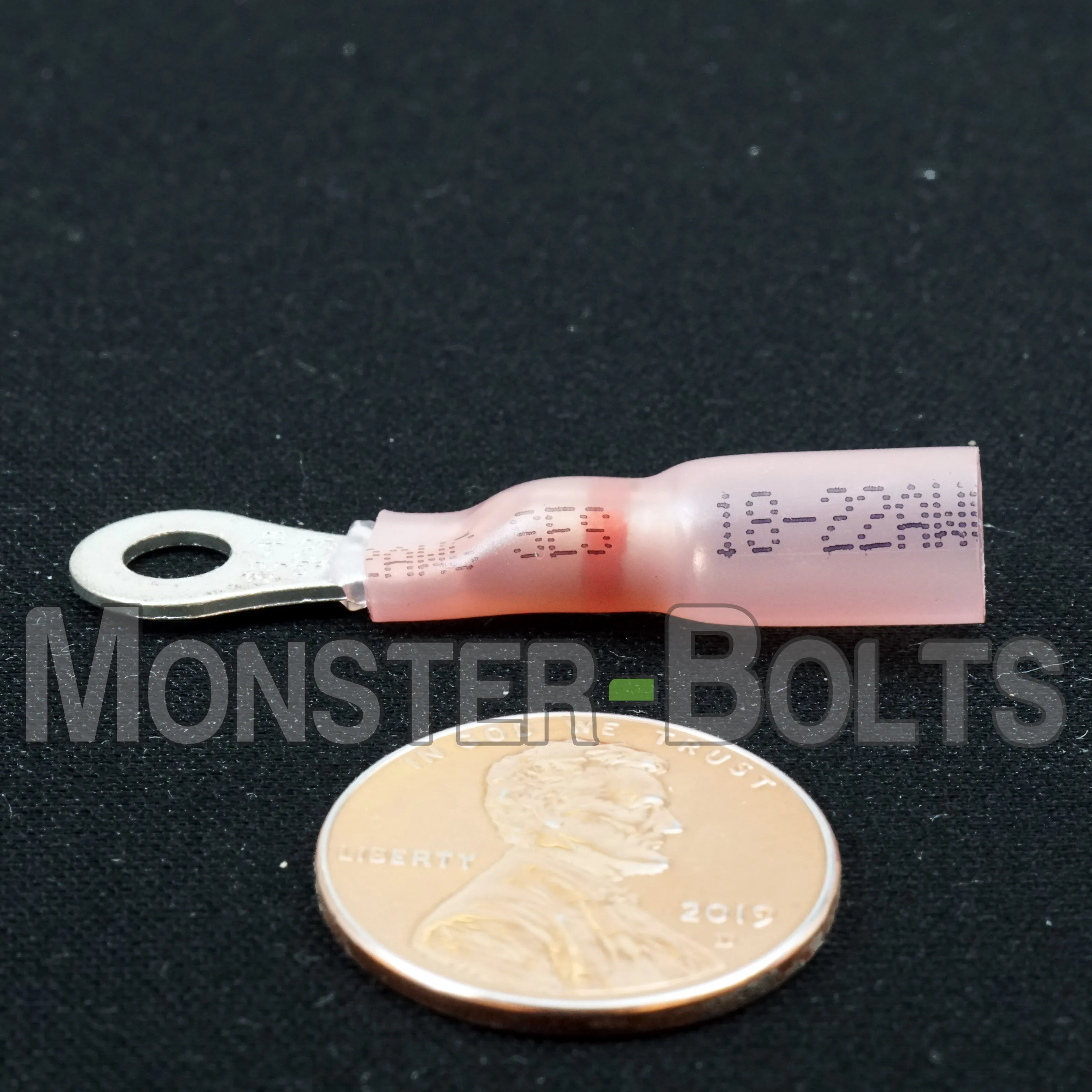

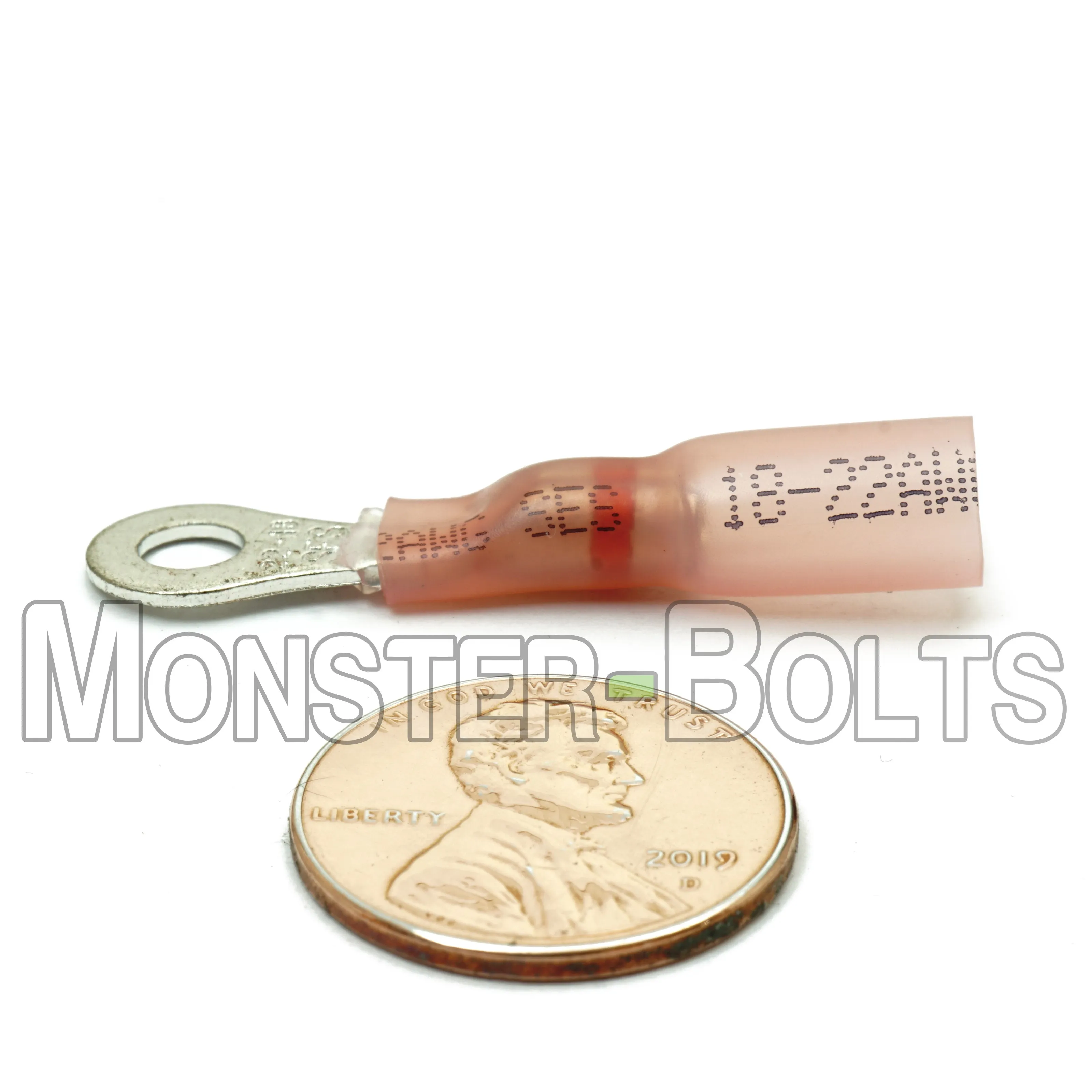

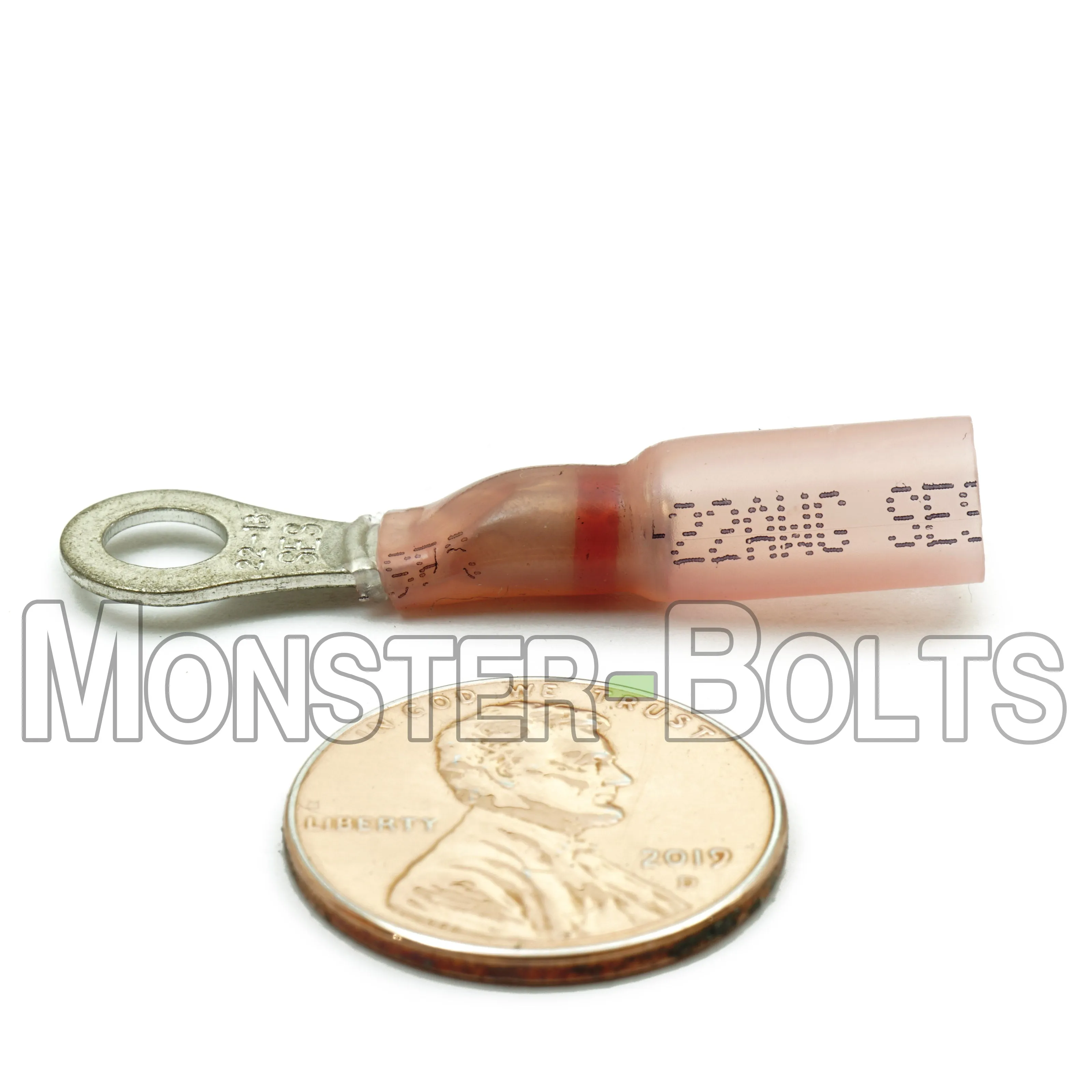

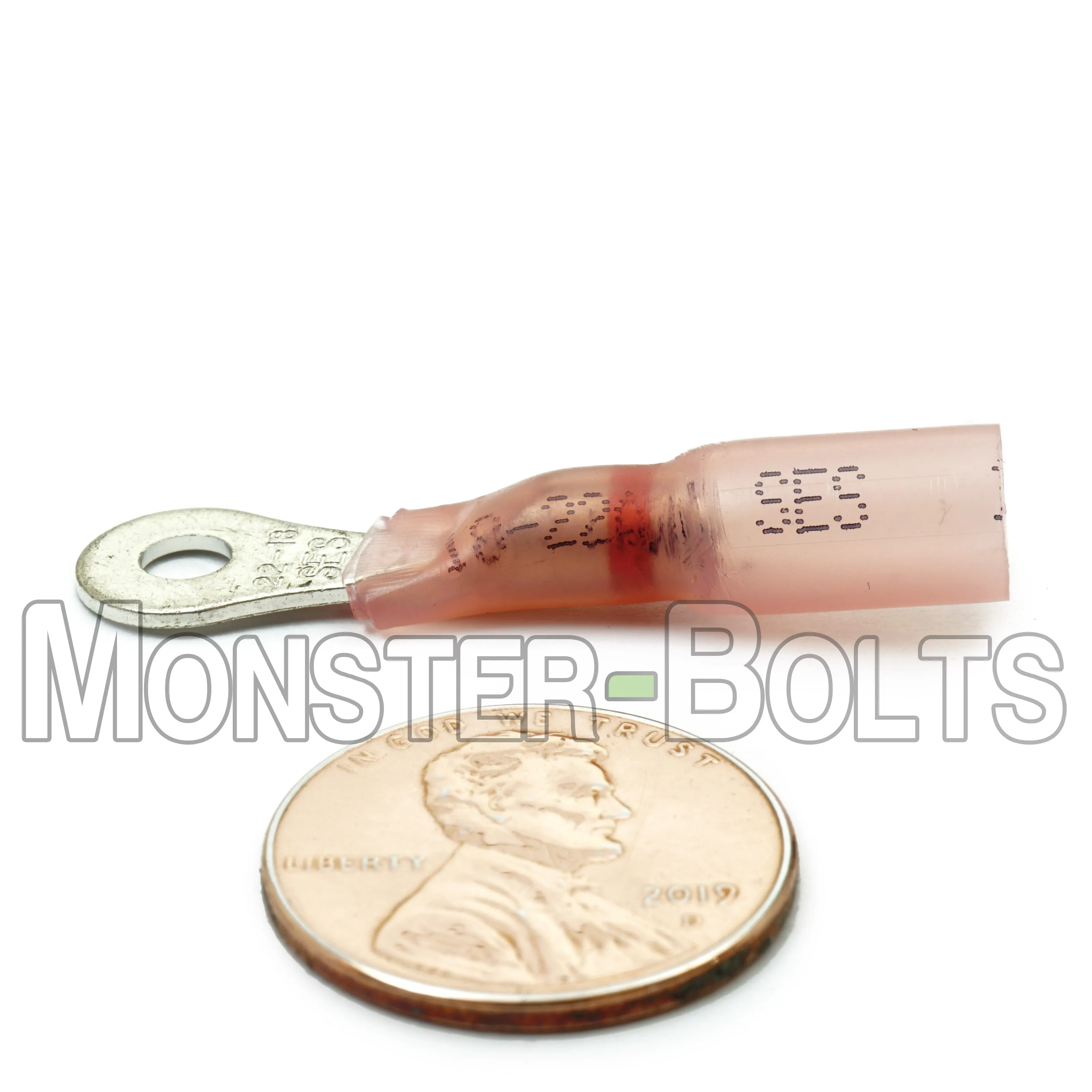

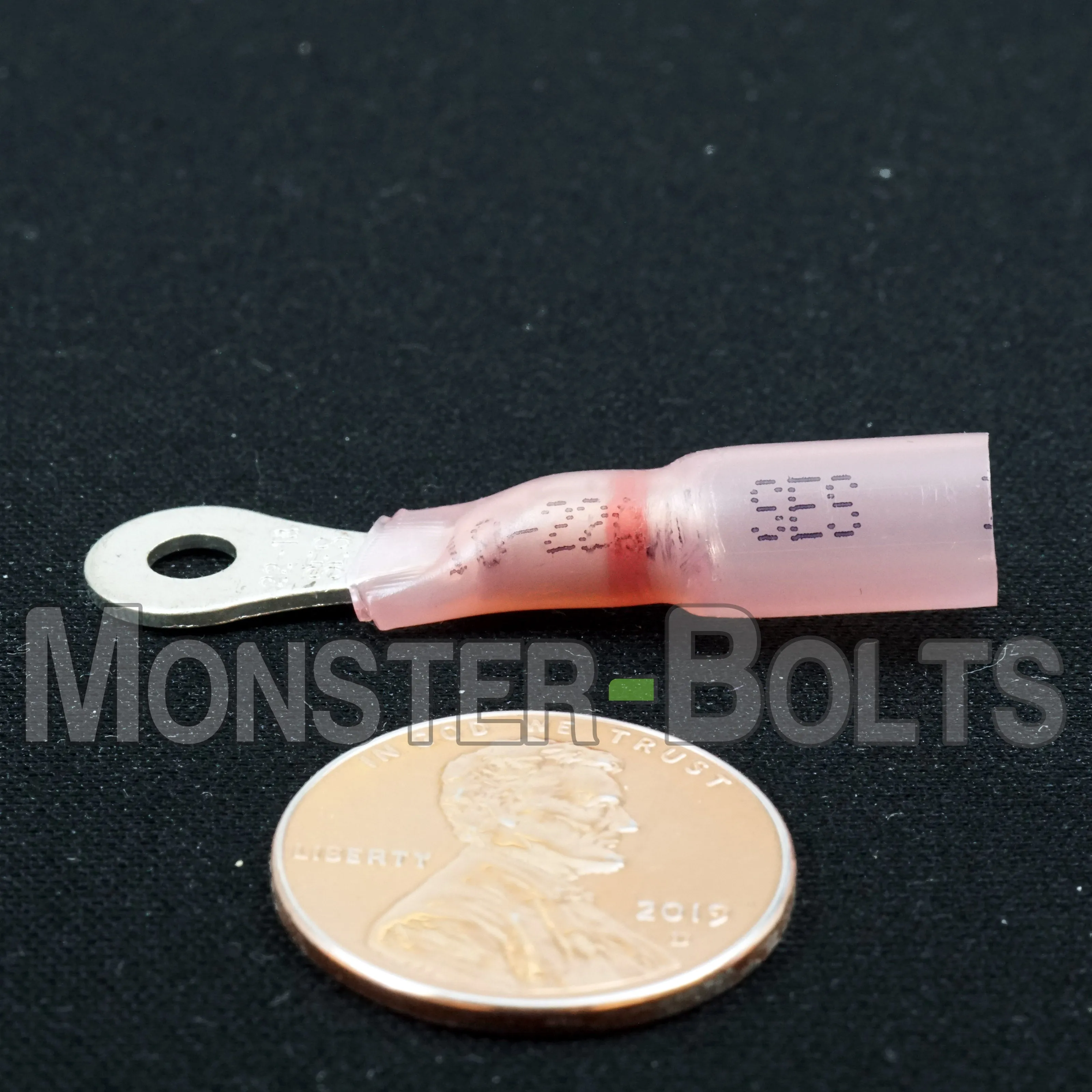

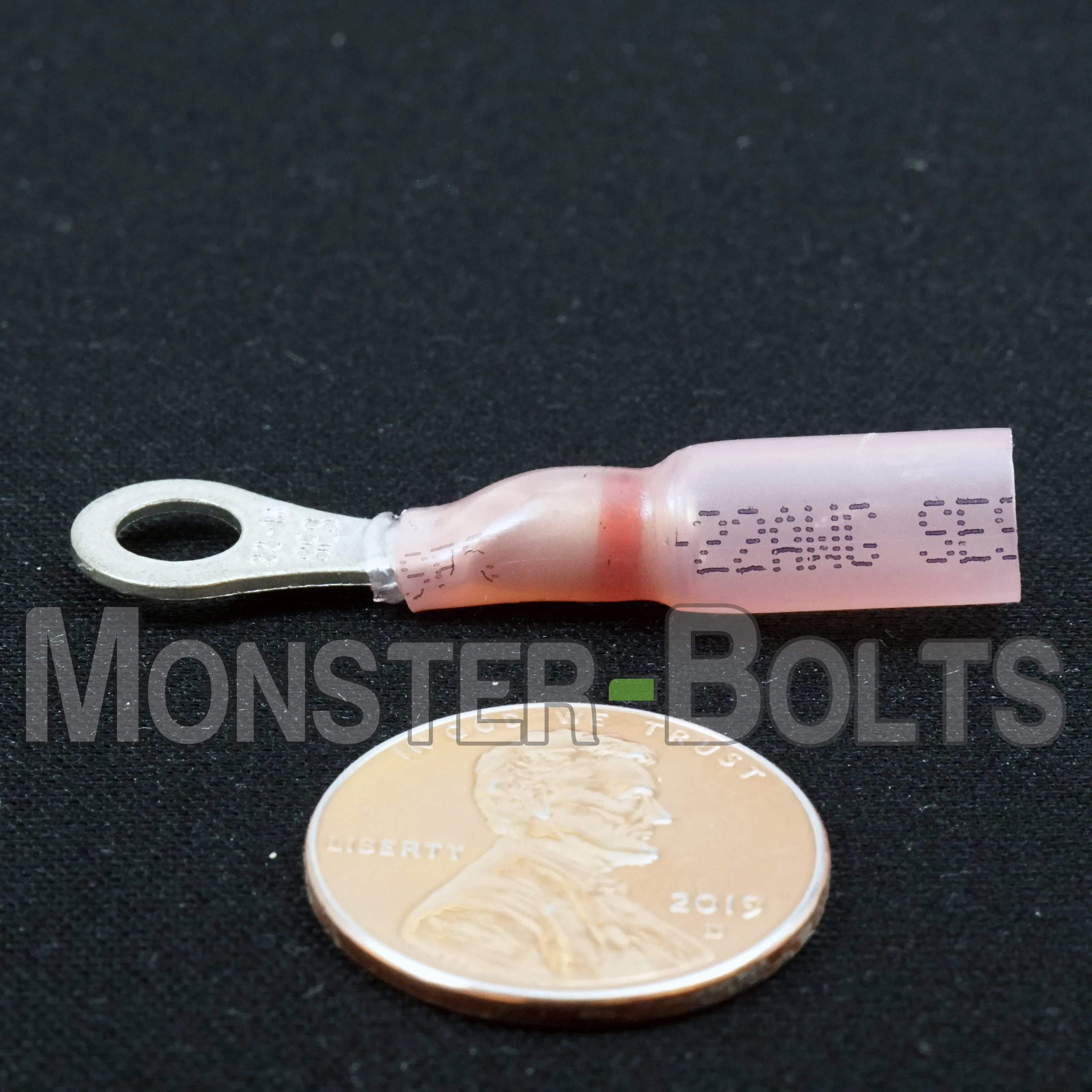

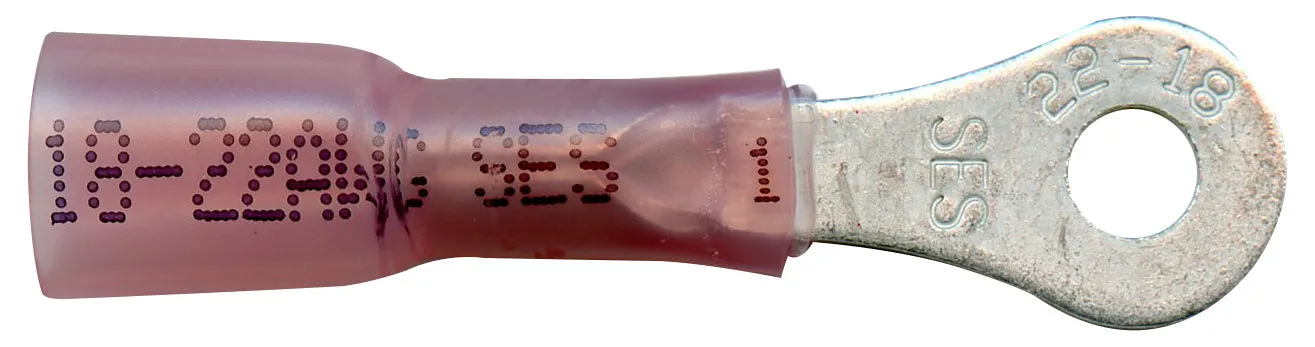

Secure your wire-to-stud connections with NSPA Krimpa-Seal? Long Neck Ring Terminal Connectors. These red sealed terminals for 22?C18 AWG wires feature a heat-shrink polyolefin sleeve, brazed seam, and extra-length neck to provide reliable contact without interfering with the tubing.
Each connector is made in the USA and designed to be RoHS compliant, vibration-resistant, and suitable for marine, auto, trailer, and industrial wiring. The long neck allows stacking and smooth sealing without obstruction.
Monster Features:
- Brand: NSPA Krimpa-Seal?
- Connector Type: Sealed Long Neck Ring Terminal
- Seal Type: Crimp & Seal with heat shrink tubing
- Made in: USA

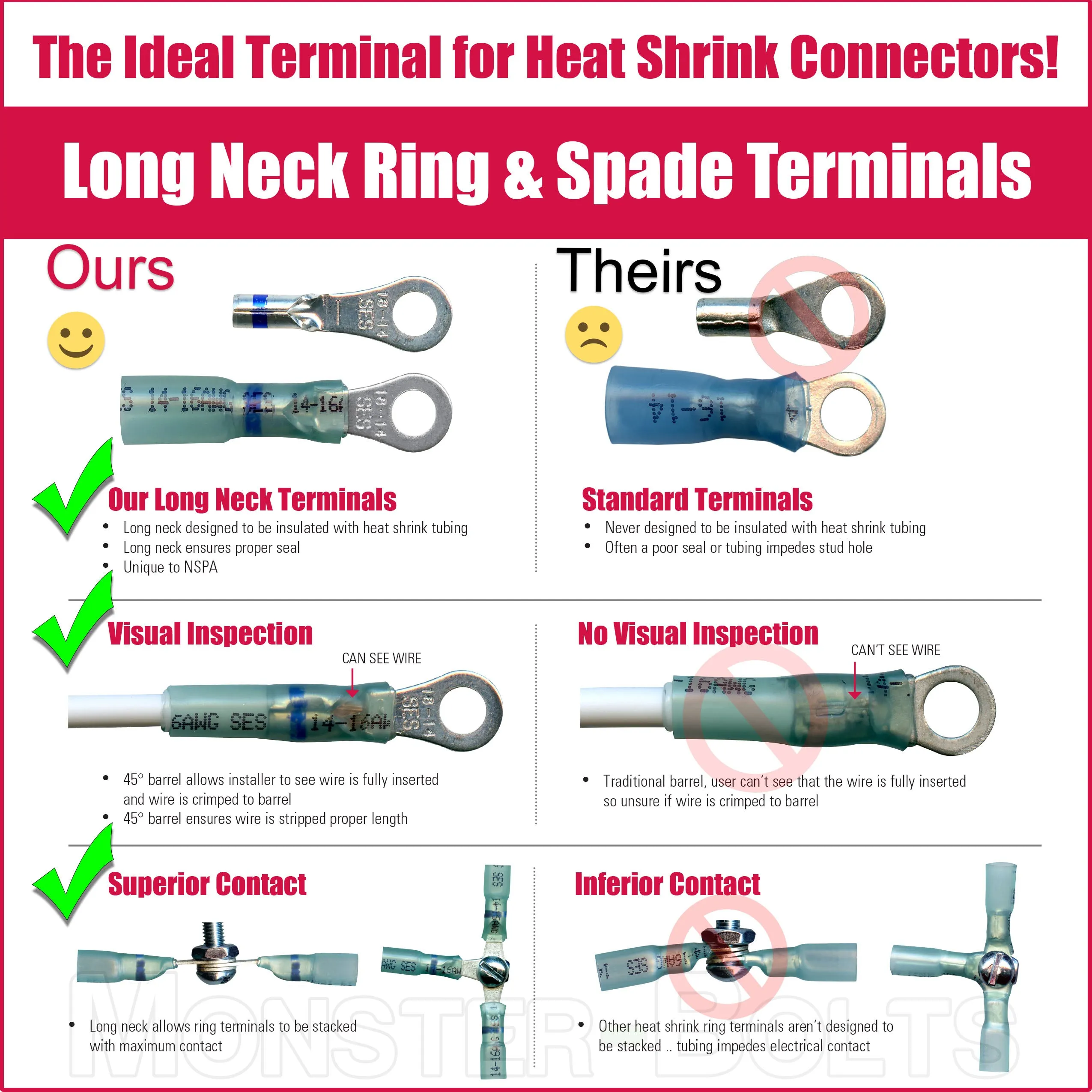

- Neck Design: Long neck for optimal shrink coverage and stackability
- Barrel: Brazed seam for secure, high-conductivity connection
- Tubing: Adhesive-lined polyolefin, 3:1 shrink ratio
- Waterproof Rating: IP67 when installed properly*
- Compliance: RoHS compliant
Monster Specifications:
- Color Code: Red
- Wire Gauge: 22?C18 AWG
- Stud Sizes: #6, #8, #10
- Part #s: KS116-06L, KS116-08L, KS116-10L
- Seam Type: Brazed
- Tubing: Adhesive-lined heat shrink polyolefin

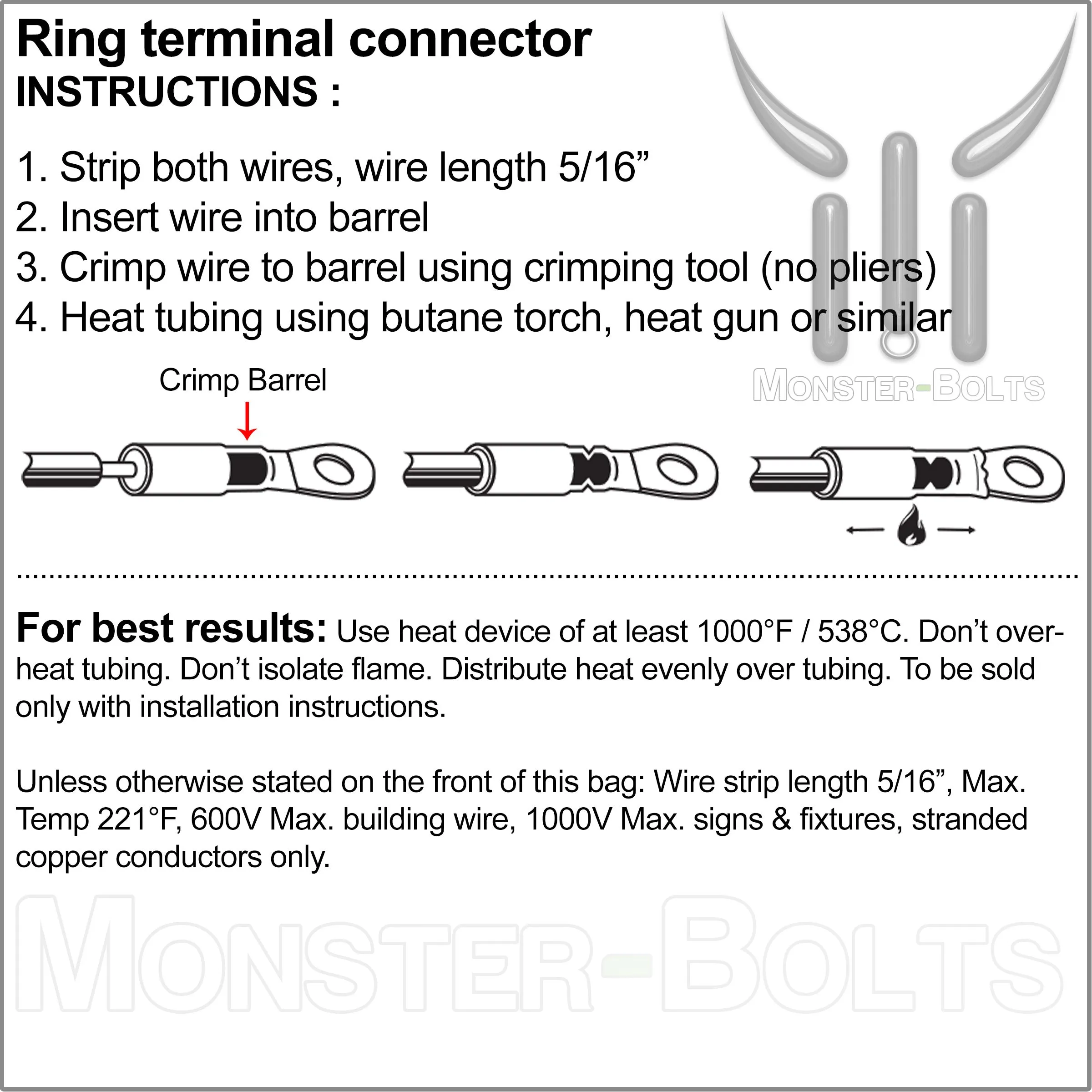

Installation Instructions:
- Strip wire to 5/16" (8 mm)
- Insert wire fully into barrel
- Crimp using a ratcheting crimp tool
- Apply heat evenly until tubing shrinks and adhesive seals around the neck
For best results: Use a heat tool capable of at least 1000 ??F (538 ??C). Avoid overheating or holding the flame in one spot??apply heat evenly for a proper seal.
Order Yours Today from Monster Bolts!
Whether you need a #6, #8, or #10 stud size, Monster Bolts stocks NSPA??s long neck sealed ring terminals for fast delivery. Built for serious projects??engineered to last.
* There is no official UL standard for ??waterproof?? connectors. When properly installed, these typically meet IP67: dust-tight and resistant to temporary immersion (15 cm ?C 1 m for up to 30 minutes).
