Monster Overview:

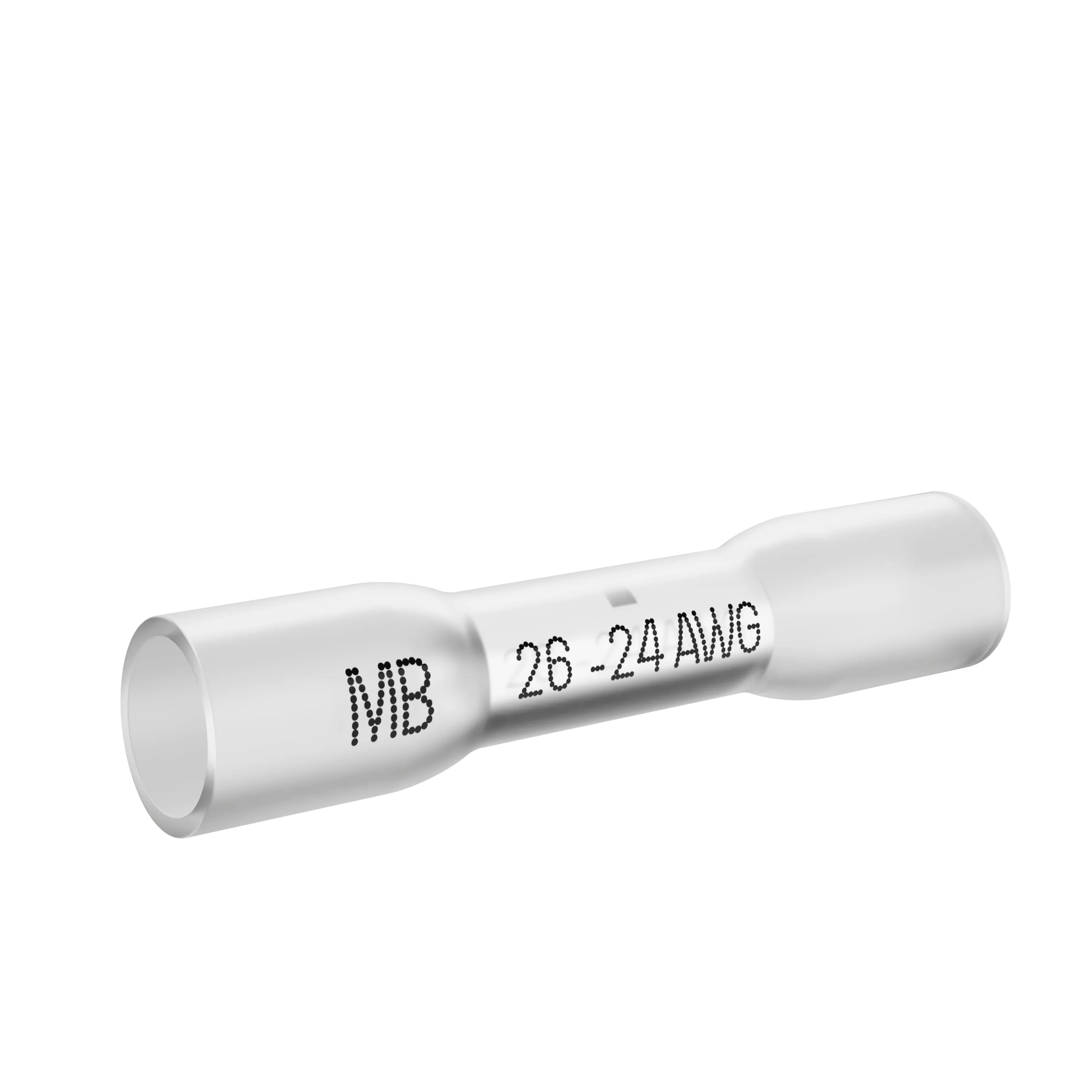

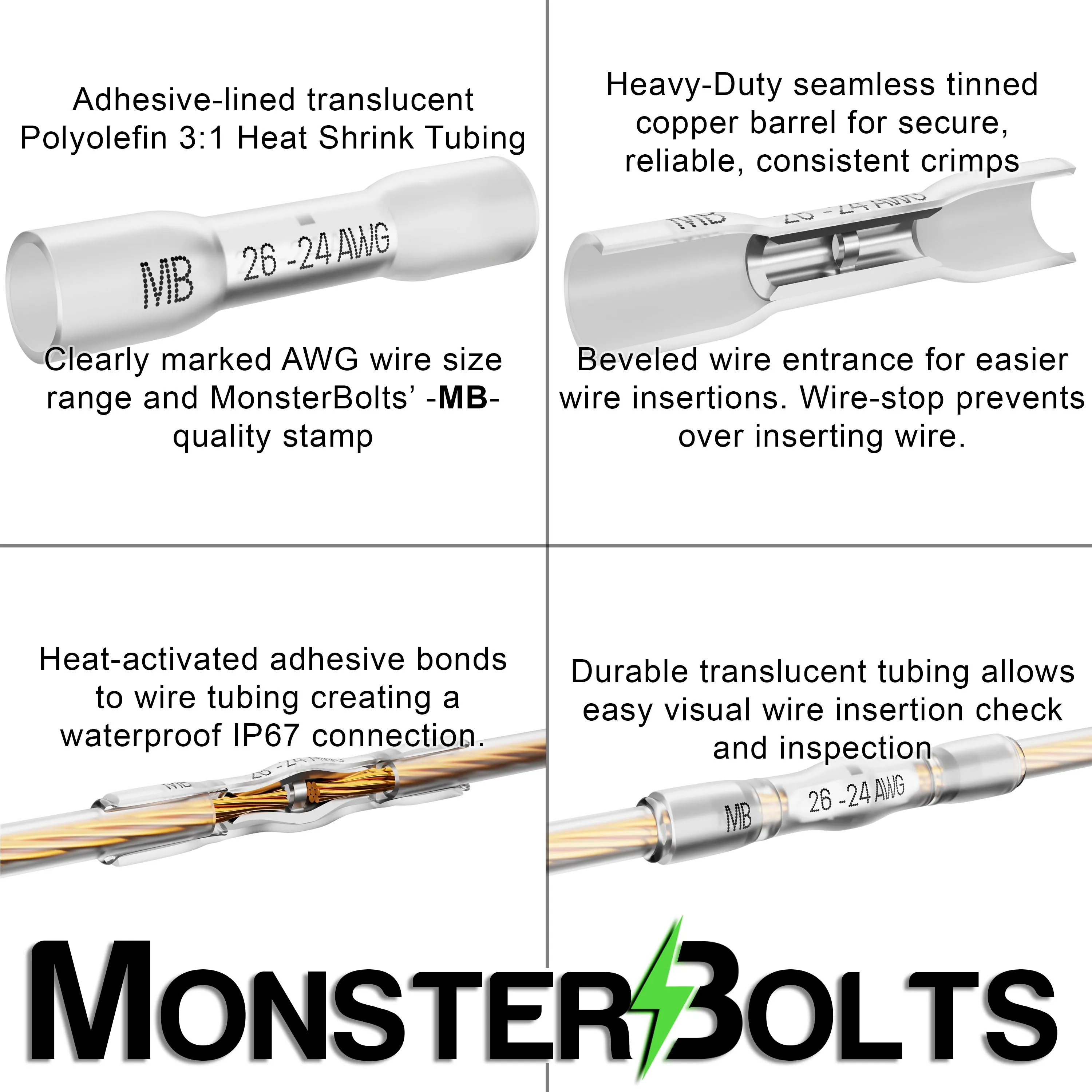

Fix your project right the first time with?26-24 AWG Clear MonsterBolts Sealed Butt Connectors! Engineered and branded in-house, these connectors marry a seamless tinned-copper barrel with premium 3 : 1 adhesive-lined polyolefin tubing for an IP67-level waterproof splice in seconds.
Each unit is laser-etched with its AWG range and the MB logo, so you can ID the size at a glance. UL rated, RoHS compliant, and always in stock at our Milton, FL warehouse.
Monster Features:
- Brand: MonsterBolts? (exclusive)
- Seal Type: Crimp & Seal with heat-shrink tubing
- Waterproof Rating: IP67 when installed as directed*
- Barrel: Seamless tinned copper for < 0.003 ?? resistance
- Tubing: Clear 3 : 1 adhesive-lined polyolefin
- Operating Range: ?40 ??C - 125 ??C (?40 ??F - 257 ??F)

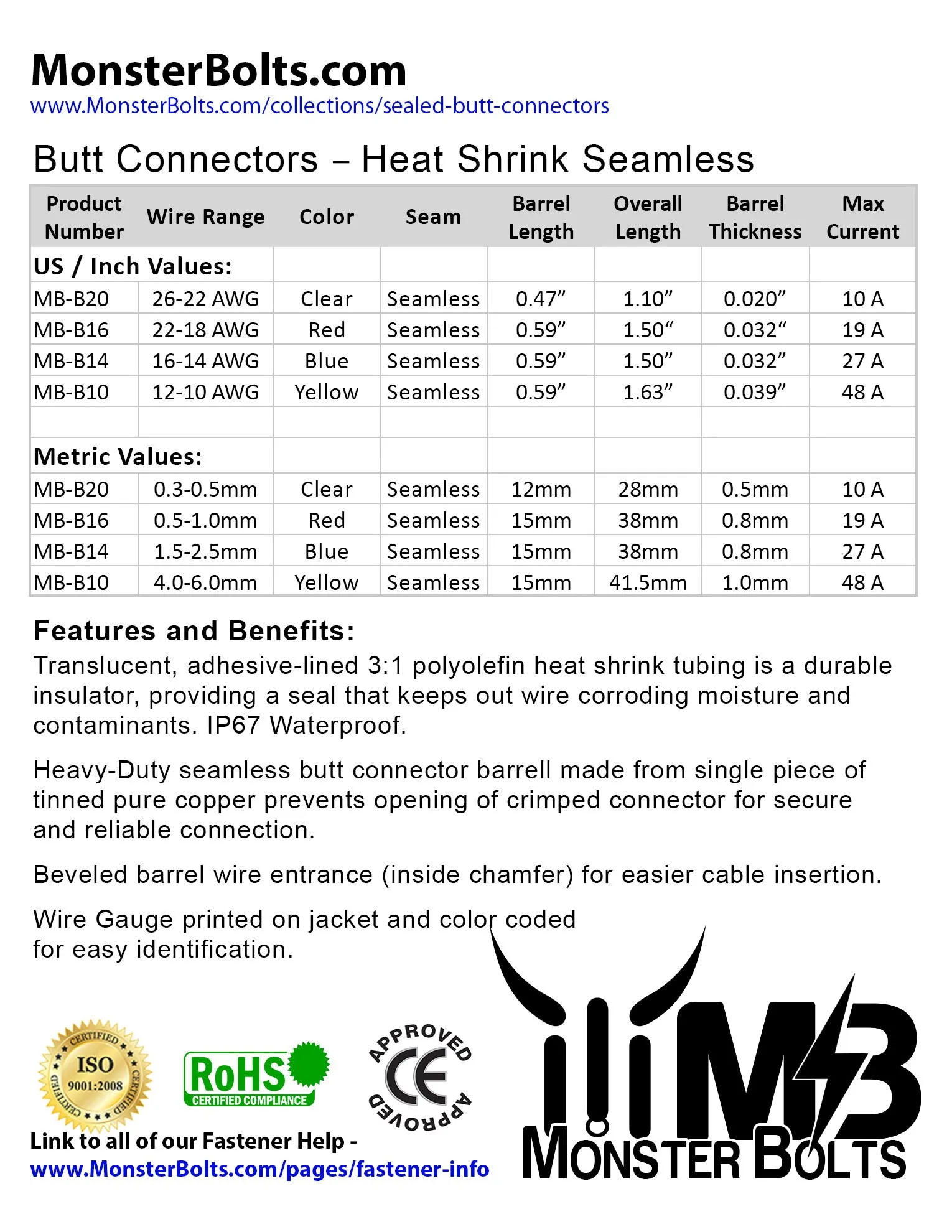

Monster Specifications:
- Wire Gauge: 26-24 AWG ?? Color Code: Clear / White
- Connector Style: Butt splice
- Part #: MB-B20
- Material: Tinned-copper sleeve ?? Adhesive-lined polyolefin
Installation Steps:
- Strip each wire 5/16 ?? (8 mm).
- Insert wires fully into barrel.
- Crimp with a ratcheting crimp tool.
- Apply heat evenly until tubing fully shrinks and adhesive flows.
More Monster Bolts:
Need 22-18 AWG or 12-10 AWG? View our complete .
Order Yours Today and Experience the Monster Bolts Difference!
Buy with confidence??fast U.S. shipping and legendary Monster support come standard with every order.
*IP ratings are based on industry best practice; UL does not publish a formal ??waterproof connector?? standard.
