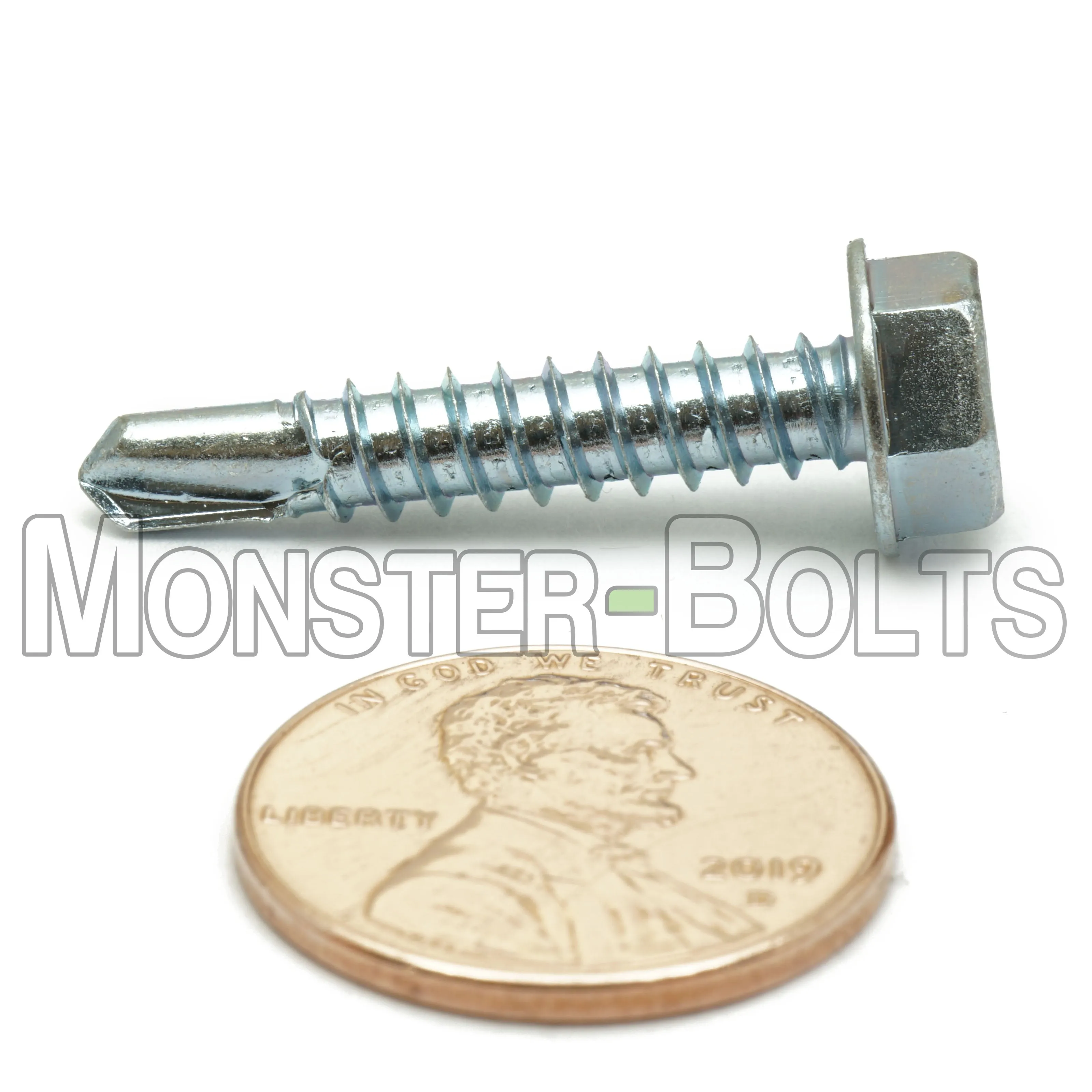

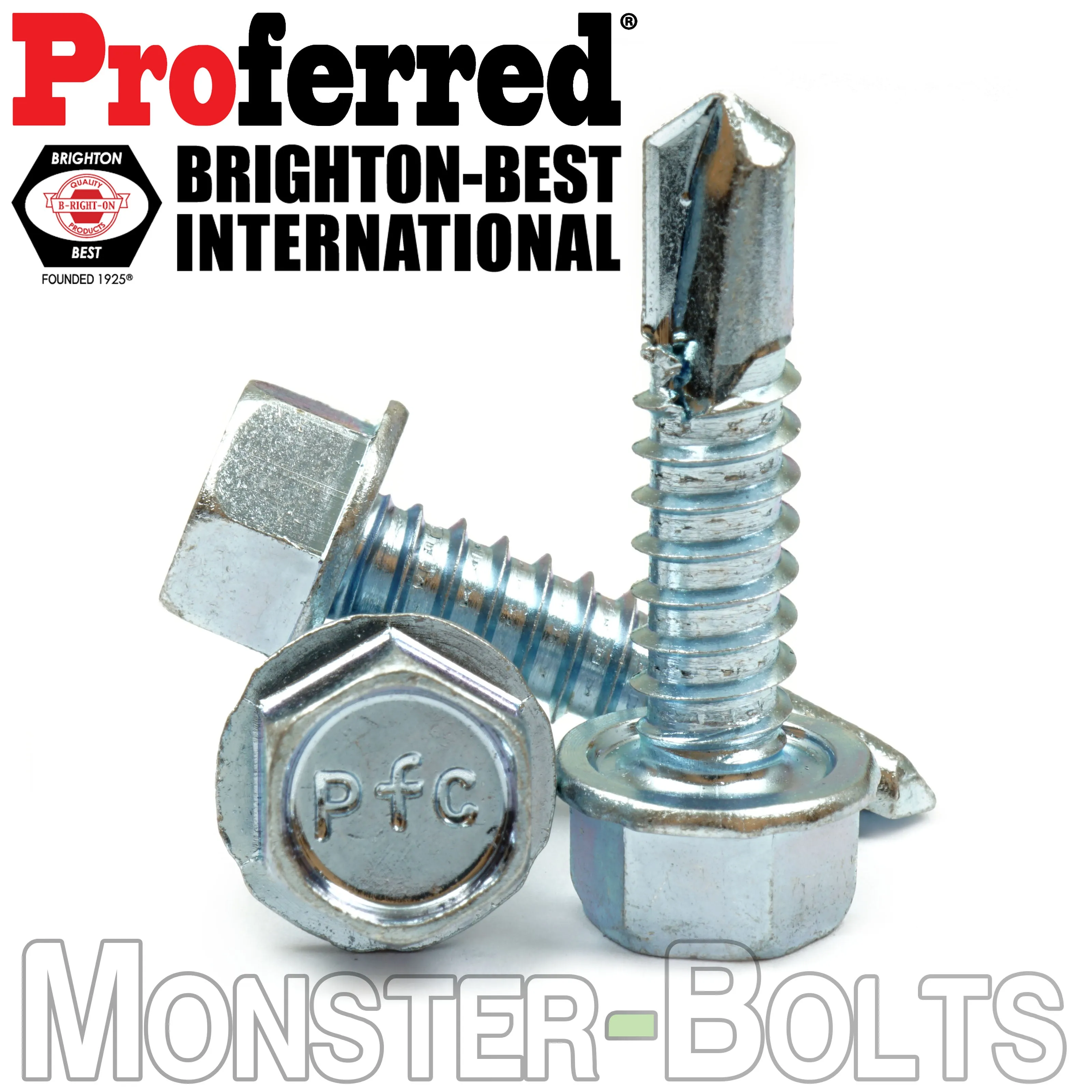

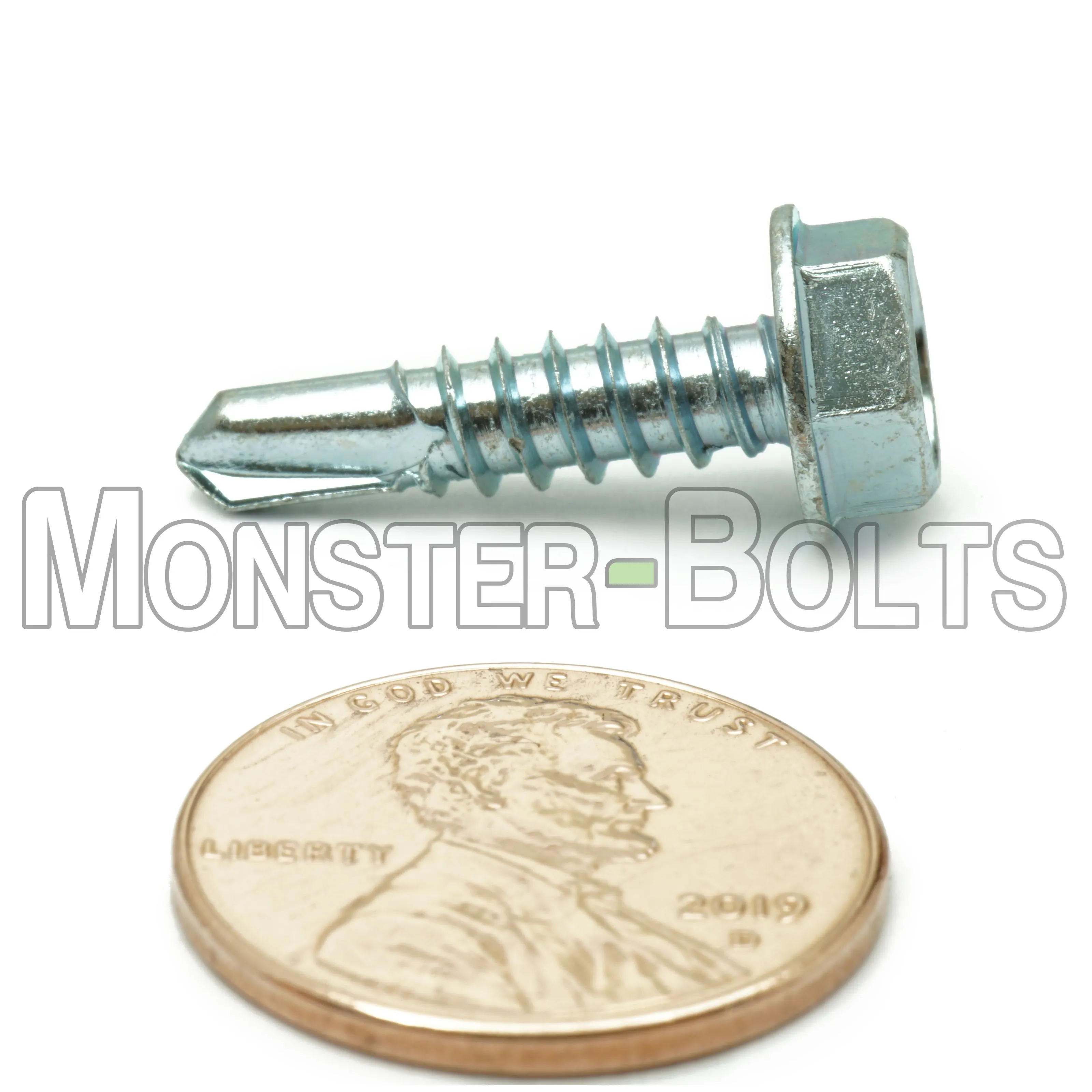

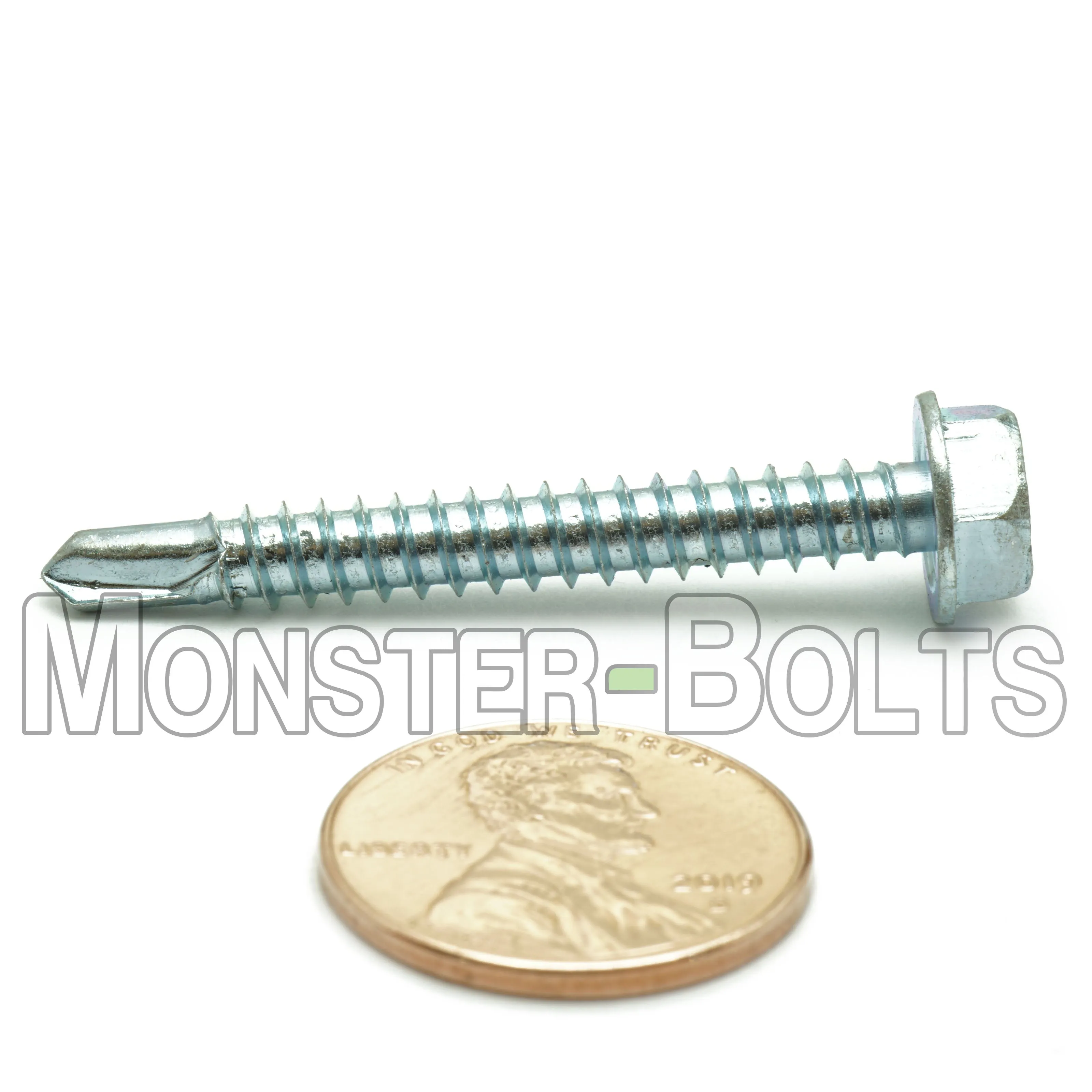

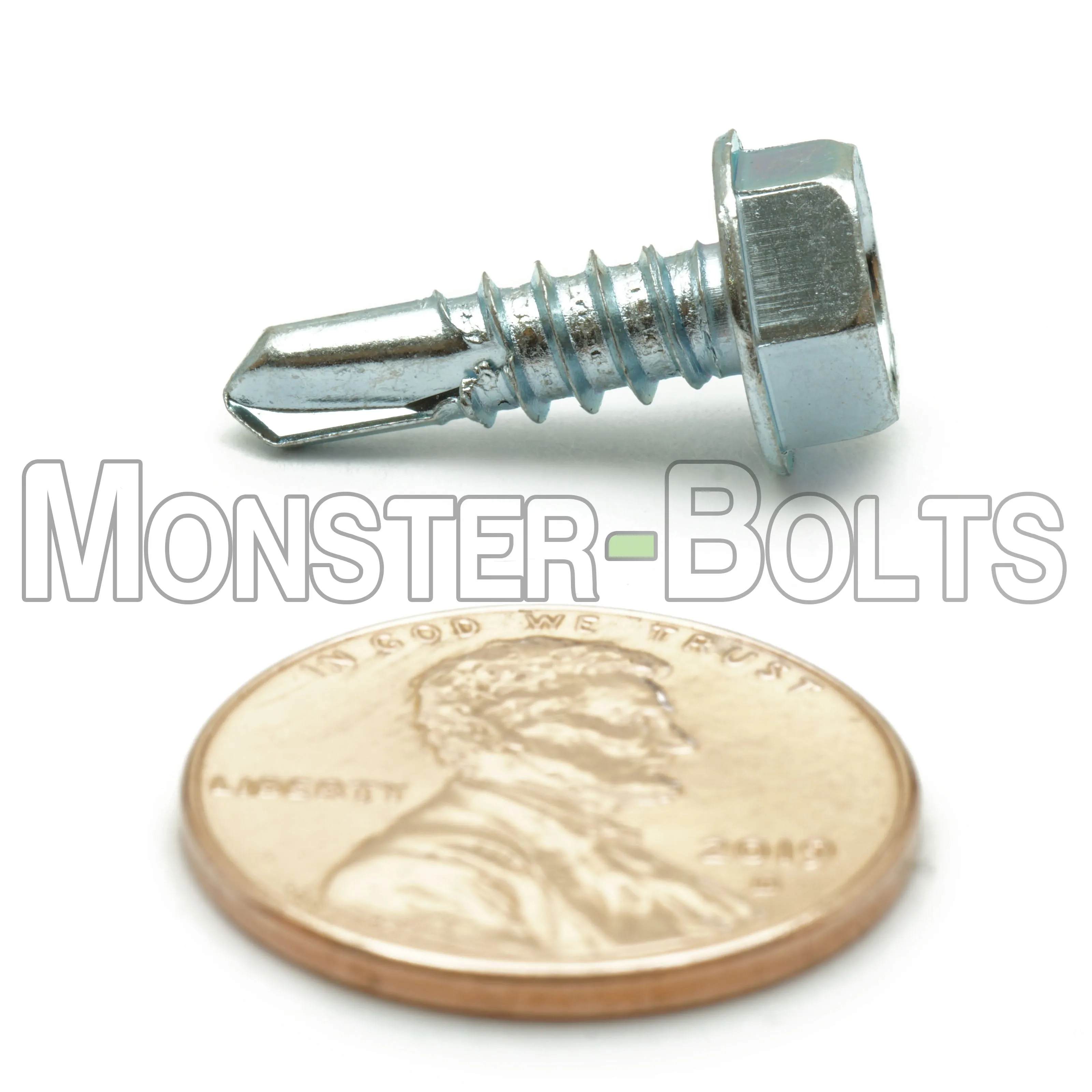

#10 Indent Hex Washer Head Self-Drilling Sheet Metal Screws

Brighton-Best Proferred? Premium Steel with Zinc Cr 3 Coating (RoHS Compliant)

Introducing our high-quality #10 Indent Hex Washer Head (HWH) Unslotted Self-Drilling Sheet Metal Screws with a #3 drill point. Manufactured by Brighton-Best International's Proferred? line, these screws are made from premium steel with a Zinc Cr 3 plating, providing excellent corrosion resistance and compliance with RoHS standards. Please note that all lengths have a #3 drill point except for the 1/2 inch length, which has a #2 drill point due to its shorter length.

Key Features

• Diameter: #10 / 0.190 inch
• Thread Size: 16 Threads Per Inch (TPI)
• Manufacturer and Product Line: Brighton-Best, Proferred?
• Drive: External Hex, 5/16 inch ?C
• Material and Plating: Steel, Zinc Cr 3 (RoHS Compliant)
• Type: Self-Drilling Sheet Metal Screw with #3 Drill Point (#2 for 1/2 inch length)
• System of Measurement: Inch (Imperial / US)

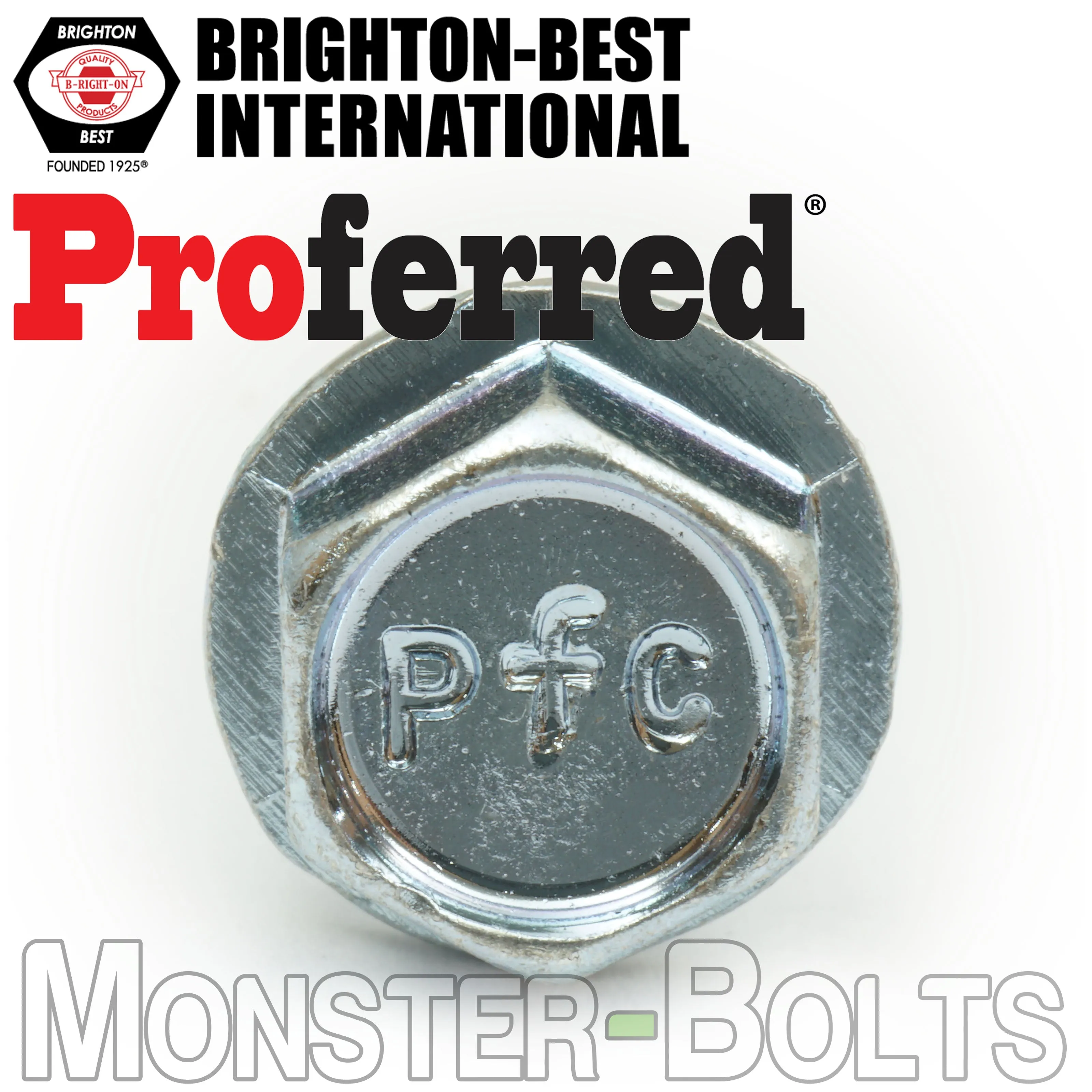

• Head Style: Indent Hex Washer Head (Unslotted)
• Hex Size (Across Flats): 5/16 inch (Hex Drive Size)
• Head Diameter (Max, Min): Max 0.414 inch, Min 0.384 inch
• Head Height (Max, Min): Max 0.151 inch, Min 0.124 inch
• Washer Face Thickness (Max, Min): Max 0.031 inch, Min 0.019 inch
• Standards: Compliant with ASME B18.6.3, IFI-113

Material Properties

These screws are made from premium steel with Zinc Cr 3 plating, offering:

• High Strength: Durable construction suitable for demanding applications.
• Excellent Corrosion Resistance: Zinc Cr 3 plating provides superior protection against rust and corrosion.
• RoHS Compliant: Environmentally friendly coating that meets RoHS standards.

Ideal Applications

• Metal Building Construction
• Roofing and Siding Installations
• HVAC Ductwork
• Automotive Sheet Metal Work
• General Metal Fabrication

Why Choose These Screws?

• Authentic Brighton-Best Quality: Manufactured by Brighton-Best International's Proferred? line.
• Self-Drilling Capability: Designed to drill through metal without pre-drilling, saving time and effort.
• Versatile Drill Points: All lengths have a #3 drill point except for the 1/2 inch length, which has a #2 drill point for optimal performance.
• Corrosion Resistance: Zinc Cr 3 plating offers excellent protection against rust, suitable for indoor and outdoor use.
• RoHS Compliant: Environmentally friendly plating meets RoHS standards.

Installation Tips

For optimal performance when self-drilling through metal:

• Use high pressure and low speed to prevent wearing out the self-drilling tip.
• Ensure the screw is perpendicular to the work surface to prevent wandering.
• A magnetic nutsetter can aid in quick and easy installation.

Note: The 1/2 inch length screws have a #2 drill point due to their shorter length.

Need the Right Tools?

Use a 5/16 inch Magnetic Nutsetter for efficient installation. .

Order Yours Today

Enhance your fastening solutions with our #10 Indent Hex Washer Head Self-Drilling Screws. Perfect for projects requiring strength, reliability, and efficient installation. Order now and benefit from fast shipping and exceptional customer service!

?? Trusted by professionals in construction and metalworking industries

?? Manufactured by Brighton-Best International's Proferred? line

?? Compliant with ASME B18.6.3, IFI-113 standards
